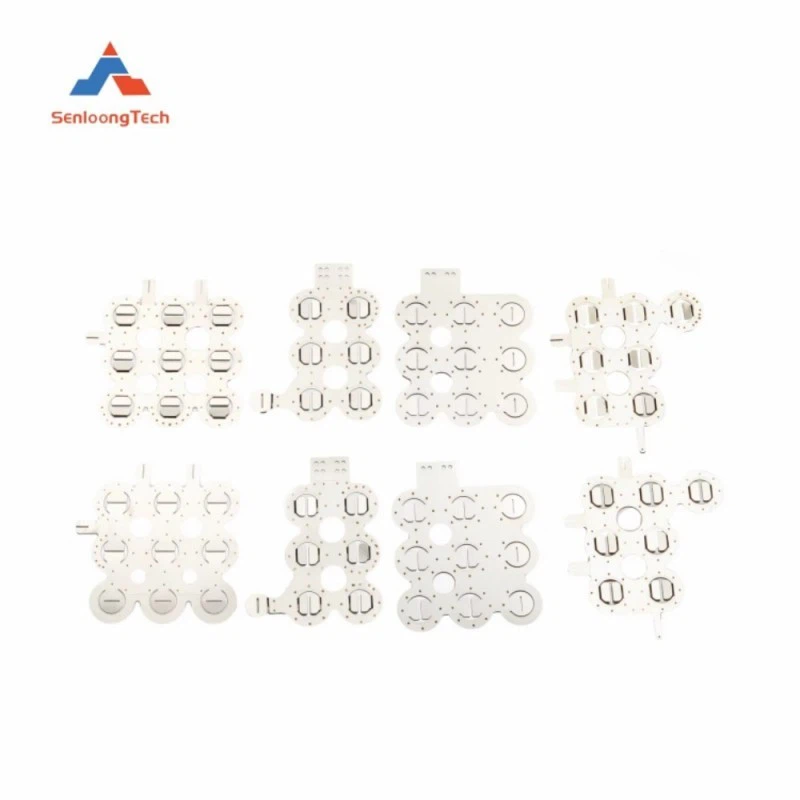

Stamping Connector Pure Nickel Sheet
●Product name:Stamping connector pure nickel sheet
●Material:Pure Nickel, nickel plated steel
●Service:Custom Fabrication Services
●Surface treatment:nickel plating, tinplating
●Package:PE Bag, Tape and reel package, etc
●Thickness:0.1-3mm
●Keyword:Pure nickel battery tab
●MOQ:we can accept any quantity to meet your request
Product Description: High-Performance Pure Nickel Stamping Connectors
OEM Pure Nickel Stamping Connector Manufacturing - Precision Electrical Contacts for Demanding Applications
We specialize in manufacturing precision-stamped connectors from pure nickel materials, providing superior electrical and mechanical performance for critical connection applications. Our expertise lies in transforming pure nickel sheets into reliable, high-conductivity connectors through advanced stamping techniques and specialized post-processing. These connectors offer exceptional corrosion resistance, stable contact resistance, and excellent durability under extreme conditions, making them ideal for aerospace, medical, and high-reliability industrial applications where material purity and performance consistency are paramount.
|
Product name |
Custom stamping pure nickel tab sheet for battery pack |
|
Material |
Pure Nickel (Ni200, Ni201, ASTM B162), Nickel Alloys (Inconel, Monel) |
|
Material Thickness |
0.05mm - 2.0mm (ultra-thin to standard gauges) |
|
Tolerance Range |
±0.01mm (critical dimensions), ±0.03mm (standard features) |
|
Surface Finish |
Bright annealed, matte finish, gold/nickel electroplating options |
|
Electrical Properties |
Contact resistance: ≤0.5mΩ, Current rating: 1-200A capacity |
|
Mechanical Properties |
Tensile strength: 380-550MPa, Hardness: 70-90 HRB (adjustable) |
|
Temperature Range |
Continuous operation: -200°C to +350°C |
|
Corrosion Resistance |
Excellent resistance to alkalis, salts, and most organic compounds |
Product Features
●Ultra-Pure Material Processing
Specialized handling and processing of pure nickel materials (99.6%+ purity) to prevent contamination and maintain material integrity throughout manufacturing.
●Micro-Stamping Precision
Advanced precision stamping technology capable of producing features as small as 0.1mm with exceptional edge quality and dimensional consistency.
●Stress-Relief Engineering
Proprietary annealing and stress-relief processes ensure dimensional stability and prevent spring-back issues in critical contact applications.
●Controlled Grain Structure
Material processing maintains optimal grain structure orientation for enhanced mechanical properties and consistent electrical performance.
●Surface Integrity Preservation
Specialized tooling and handling prevents surface scratching and contamination, crucial for maintaining low contact resistance.
●High-Temperature Stability
Pure nickel's inherent thermal stability combined with our processing techniques ensures reliable performance across extreme temperature ranges.
●Corrosion Performance Optimization
Material purity and controlled surface conditions provide exceptional resistance to various corrosive environments without additional coatings
Product Applications
▲Aerospace & Defense: Avionics connectors, engine sensor contacts, satellite component interconnects
▲Medical Devices: Implantable device contacts, surgical instrument connectors, diagnostic equipment interfaces
▲Energy Systems: Fuel cell stack interconnects, battery management system terminals, nuclear instrumentation
▲High-End Electronics: Semiconductor test sockets, precision instrument contacts, vacuum tube components
▲Chemical Processing: Corrosion-resistant sensor contacts, electrolysis equipment connectors
▲Telecommunications: High-frequency RF connectors, base station power contacts
Customization Workflow
1: Application Analysis & Material Selection
Detailed review of electrical, mechanical, and environmental requirements to specify optimal nickel grade and processing parameters.
2: Precision Tooling Design & Fabrication
Design and manufacture of high-precision progressive dies with specialized nickel-compatible materials and clearances.
3: Process Development & Parameter Optimization
Establishment of stamping parameters, including tonnage, speed, and lubrication specifically optimized for pure nickel characteristics.
4: Prototype Manufacturing & Validation
Limited production of prototypes for functional testing, including electrical performance, mechanical durability, and environmental validation.
5: Pilot Production & Process Verification
Small batch production with statistical process control to verify manufacturing consistency and quality metrics.
FAQ
Q1: Why choose pure nickel over nickel-plated alternatives for connector applications?
Pure nickel offers superior performance consistency, better high-temperature stability, and eliminates the risk of plating wear or delamination. Its homogeneous material properties ensure uniform current distribution and more predictable long-term behavior in critical applications.
Q2: How do you address pure nickel's work hardening characteristics during stamping?
We employ specialized tooling geometries, controlled stamping sequences, and implement intermediate annealing processes when necessary. Our experience allows us to predict and compensate for work hardening effects, maintaining consistent material properties throughout production.
Q3: What surface finish options do you recommend for different application environments?
For general applications, bright annealed surfaces provide excellent balance of conductivity and corrosion resistance. For high-wear applications, we recommend selective gold plating on contact areas. For extreme corrosion environments, passivation treatments can be applied while maintaining electrical performance.
Q4: What testing and validation do you perform to ensure connector reliability?
We conduct comprehensive testing including contact resistance measurements under various loads, insertion/extraction cycle testing, temperature cycling, salt spray exposure, and mechanical stress testing. We provide detailed test reports with performance data for critical applications.
Q5: What are your capabilities for producing connectors with complex 3D geometries?
We combine progressive stamping with secondary forming operations including multi-axis bending, coining, and specialized heat treatments. Our capabilities include producing connectors with complex spring features, multi-plane bends, and integrated mounting features while maintaining material integrity.
Hot Tags: stamping connector pure nickel sheet, China stamping connector pure nickel sheet manufacturers, suppliers, factory, Battery Nickel Sheet, Lithium Battery Busbar Nickel Sheet, Nickel Soldering Tabs for Battery, pure nickel sheet
