Pure Nickel Strip Solder Tabs
▲Product name:18650 Pure Nickel Strip Solder Tabs for Battery
▲Application:Battery Pack Connector
▲Grade:Pure Nickel Tabs
▲Material:Pure Nickel Strip N4 NI200
▲Surface:Tin/nickel plating available based on tech specs.
▲Custom:Accept and Welcome
▲Characristic:high temperature resistant, corrosion resistance, good weldability

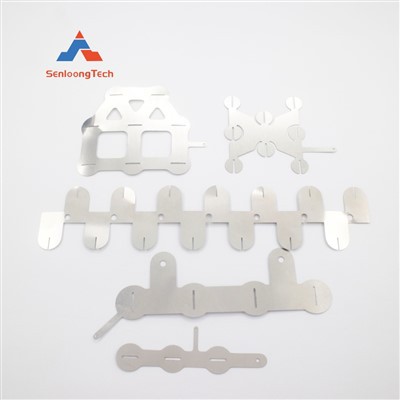

Customized battery connection pure nickel sheet
A one-stop solution from precision metals to reliable power connections
Specially designed for battery connection
At the core of battery systems, the performance of connecting materials directly affects energy transfer efficiency and system safety.
We provide professionally customized pure nickel sheets with precision stamping technology as the core, focusing on providing efficient and reliable connection components for various battery systems.
| Material | Pure nickel (purity ≥ 99.5%) |
| Thickness range | 0.1-1.0mm (customizable according to requirements) |
| Surface condition | clean state/natural state/customized state |
| Dimensional accuracy | ± 0.02mm (thickness ≤ 0.3mm) |
| Conductivity | ≥ 18% IACS (International Annealed Copper Standard) |
| Minimum punching | 0.5mm (when the material thickness is 0.2mm) |
| Maximum processing size | 300mm × 500mm (single piece stamping) |
Core process advantages
▲Professional stamping forming
●High speed precision progressive die stamping ensures consistent size of pole pieces
●The minimum bending accuracy can reach ± 0.03mm, meeting the requirements of precision assembly
●Support multi station composite stamping to achieve one-time forming of complex structures
▲Precision surface treatment
●Natural surface: preserves the original state of the material and ensures pure conductivity
●Clean surface: professional cleaning process, no oil stains, no impurities residue
●Customized surface: Special surface treatment can be carried out according to application requirements
▲Strict quality control
●100% visual inspection of each batch of products
●CCD automatic detection system for critical dimensions
●Sampling and testing of conductivity to ensure stable electrical performance
Application Solution
▲Electric bicycle battery connector
●Optimized contact area design to reduce contact resistance
●High cycle fatigue resistance performance, suitable for frequent charging and discharging needs
●Anti vibration structure design ensures long-term connection reliability
▲Battery Pack Connection System
●Multi piece parallel structure customization to meet high current transmission requirements
●Modular design scheme for easy installation and maintenance
●Optimization of temperature rise control to enhance system safety
▲Cross industry applicability
●Electronic devices: Consumer electronics battery connections
●Computer equipment: Server backup power connection
●Automotive Industry: New Energy Vehicle Battery Components
●Medical equipment: power connection for medical devices
●Sports equipment: electric tools, outdoor equipment battery systems
Customized service process
1. Requirement analysis (1-2 working days)
●Confirmation of application scenarios and technical requirements
●Drawing review and process feasibility analysis
●Preliminary cost and delivery evaluation
2. Scheme design (2-3 working days)
●Structural Optimization and DFM Analysis
●Mold scheme design
●Sample production plan formulation
3. Sample production (5-7 working days)
●Small batch sample production
●Full size inspection and performance testing
●Sample report provided
4. Batch production (according to order plan)
●Mold optimization and process solidification
●Batch production and quality control
●Timely delivery and after-sales support
Why choose us
▲Specialized focus
Focused on the field of battery connection nickel sheets for many years, with a deep understanding of industry demands and technical difficulties.
▲quality stability
Strict quality control system ensures consistent and reliable performance of each batch of products.
▲Responsiveness agility
Fast response from inquiry to delivery, supporting urgent order requirements.
▲Cost optimization
Through process optimization and large-scale production, we provide customers with cost-effective solutions.
▲Service integrity
Provide full process services from technical consultation to after-sales support to solve customers' worries.
Packaging and Logistics
▲Customized packaging solution
●Anti static packaging: suitable for precision electronic components
●Vacuum packaging: prevent oxidation and contamination
●Separate packaging: Avoid collision damage during transportation
●Customized identification: supports customer exclusive labels and barcodes
▲Flexible supply mode
●Small batch samples: support customization with minimum order quantity
●Batch orders: on-demand production, flexible scheduling
●Inventory plan: supports safety stock management
●Global logistics: professional packaging, globally accessible
FAQ
Q: What is the minimum order quantity?
A: We support small batch customization, and sample orders are acceptable, depending on the complexity of the product.
Q: Does it support customization of different shapes?
A: Support customized stamping of various shapes and provide free DFM analysis and optimization design.
Q: What is the impact of surface treatment on performance?
A: Cleaning the surface ensures welding quality, and natural surfaces are suitable for direct crimping. We can recommend the most suitable solution based on your process.
Q: Can you provide a material certification report?
A: We can provide complete material testing reports, including composition analysis, mechanical properties, electrical properties, and other data.
